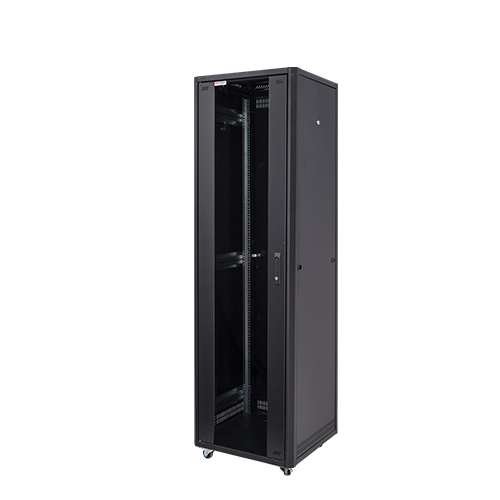

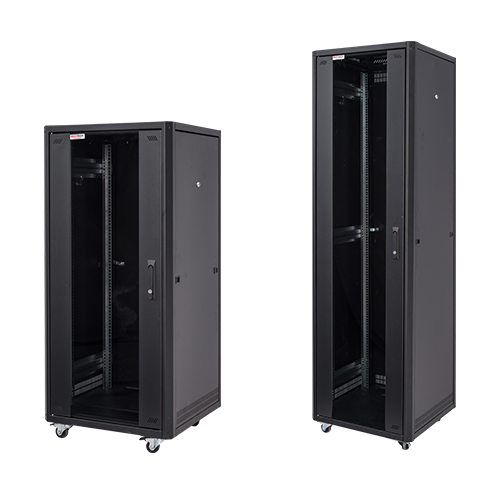

19″ 600*600 mm SILVER LINE STANDING TYPE RACK CABINETS

Construction Details

Main profile structure;

Lower and upper chassis and carcass struts; The solid upper and lower chassis have a modular structure connected from 32 points with 1.5 mm DKP sheet metal carcass profiles.

Front cover; It is manufactured as a 4mm – 6 mm tempered glass cover.

Side covers; Maintenance and repair are easily carried out thanks to the 1.0 mm sheet thickness being lockable from the top and detachable.

Cable entries; There are cable entries from the bottom chassis and the upper and lower parts of the rear cover.

19” device mounting posts; 1.5 mm thick mounting posts are manufactured from TS 822 pre-galvanized sheet metal. “U” signs are written on it.

Side reinforcements; 6 pieces of 1.5 mm thickness are used, 3 on the left and 3 on the right. Its perforated structure allows the mounting post to be adjusted throughout the depth.

Vertical cable organizers; Mechanisms that provide extensive cabling opportunities at both front and rear are available in our 800*800 mm and 800*1000 mm cabinets.

Paint; Electrostatic powder coating is done with RAL 9005 – RAL 7035 paint options.

Ventilation; Thanks to our fan and thermostat modules placed on the cabin ceiling, effective ventilation can be achieved with high flow rate and low noise.

Energy unit (PDU); The energy distribution unit can optionally have a plastic or aluminum body, grounded, UPS, fused or a monitorable and manageable structure suitable for mounting in a 19” rack cabinet.

Our server type cabinets are produced as solid, safe, protected, functional and aesthetic, suitable for structural cabling and the installation and cabling of electrical and electronic products such as switches, routers, modems, servers, patch panels, telephone exchanges, alarm systems, etc. in accordance with the project.

Shipment of the product; After passing through the quality control system, our products are shipped in impact-resistant styrofoam and cardboard packaging.
