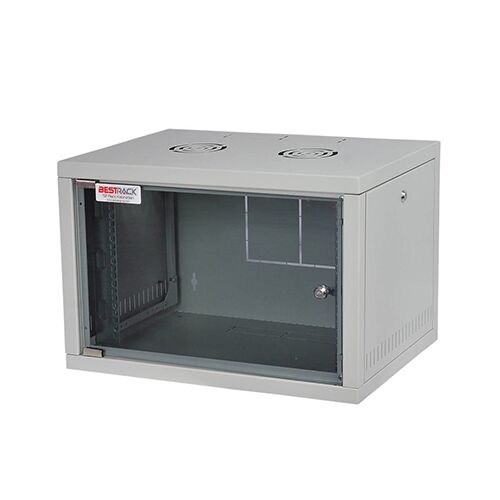

19" 600*450 mm SILVER LINE WALL MOUNT TYPE RACK CABINETS
19" 600*450 mm SILVER LINE WALL MOUNT TYPE RACK CABINETS - Image 2

19″ 600*450 mm SILVER LINE WALL MOUNT TYPE RACK CABINETS

Key Features

  • Our wall mounted cabinets provide the most suitable solutions to our customers, ensuring smooth and safe operation of the system in small-scale systems.
  • We produce our wall-mounted cabinets in our factory with a closed area of ​​18,000 m2, with TS EN 61587-1 mechanical structures (cabinets for electronic equipment) and ISO 9001:2015 quality management system.
  • All cabinet dimensions comply with IEC 297-2.
  • Our Silver Line wall mounted cabinets are offered to our customers in 7U, 9U, 12U and 16U heights for depth 600 mm products, 7U, 9U, 12U and 16U heights for depth 560 mm products, and 7U, 9U, 12U and 16U heights for depth 450 mm products.
  • The door parts of our wall-mounted cabinets have a front cover of 4 mm tempered glass and a detachable side cover, all of which are lockable and removable.
  • Our 19” device mounting posts have square holes and are adjustable in depth.
  • It provides easy installation of 19” rack type products with U marking.

Construction Details

Main profile structure;

Lower and upper chassis and carcass struts; The solid foldable body has a modular structure connected from 8 points with carcass profiles.

Front cover; It is made of 4mm tempered glass.

Side covers; It is made of 1 mm thick DKP sheet metal and is lockable and detachable from the top.

Cable entries; There are cable entry points on the lower and upper chassis.

19” device mounting posts; 1.5 mm thick mounting posts are manufactured from TS 822 pre-galvanized sheet metal.

Paint; Electrostatic powder paint is applied with RAL 7035 color code.

Ventilation; Thanks to our fan and thermostat modules placed on the cabin ceiling, effective ventilation can be achieved with high flow rate and low noise.

Energy unit (PDU); The energy distribution unit can optionally have a plastic or aluminum body, grounded, UPS, fused or a monitorable and manageable structure suitable for mounting in a 19” rack cabinet.

Shipment of the product; After passing through the quality control system, our products are shipped in impact-resistant styrofoam and cardboard packaging.

PRODUCT DIMENSIONS

Product Code Description Width (mm) Depth (mm) Height (mm) Weight (kg)
ZEY.SLM07U6045 07U 600×450 mm Silver Line Wall Mount Cabinet 600 450 405 15.00
ZEY.SLM09U6045 09U 600×450 mm Silver Line Wall Mount Cabinet 600 450 495 17.00
ZEY.SLM12U6045 12U 600×450 mm Silver Line Wall Mount Cabinet 600 450 625 20.40
ZEY.SLM16U6045 16U 600×450 mm Silver Line Wall Mount Cabinet 600 450 805 23.80

TECHNICAL DOCUMENT

PRODUCT INSTALLATION
